Patriot CTF: ReReCaptcha

This was an RSA challenge which required the use of OCR (Optical character recognition - converting an image of text into text format).

The Challenge

The challenge had a zip file containing four images:

CT.png:

CT

E.png:

E

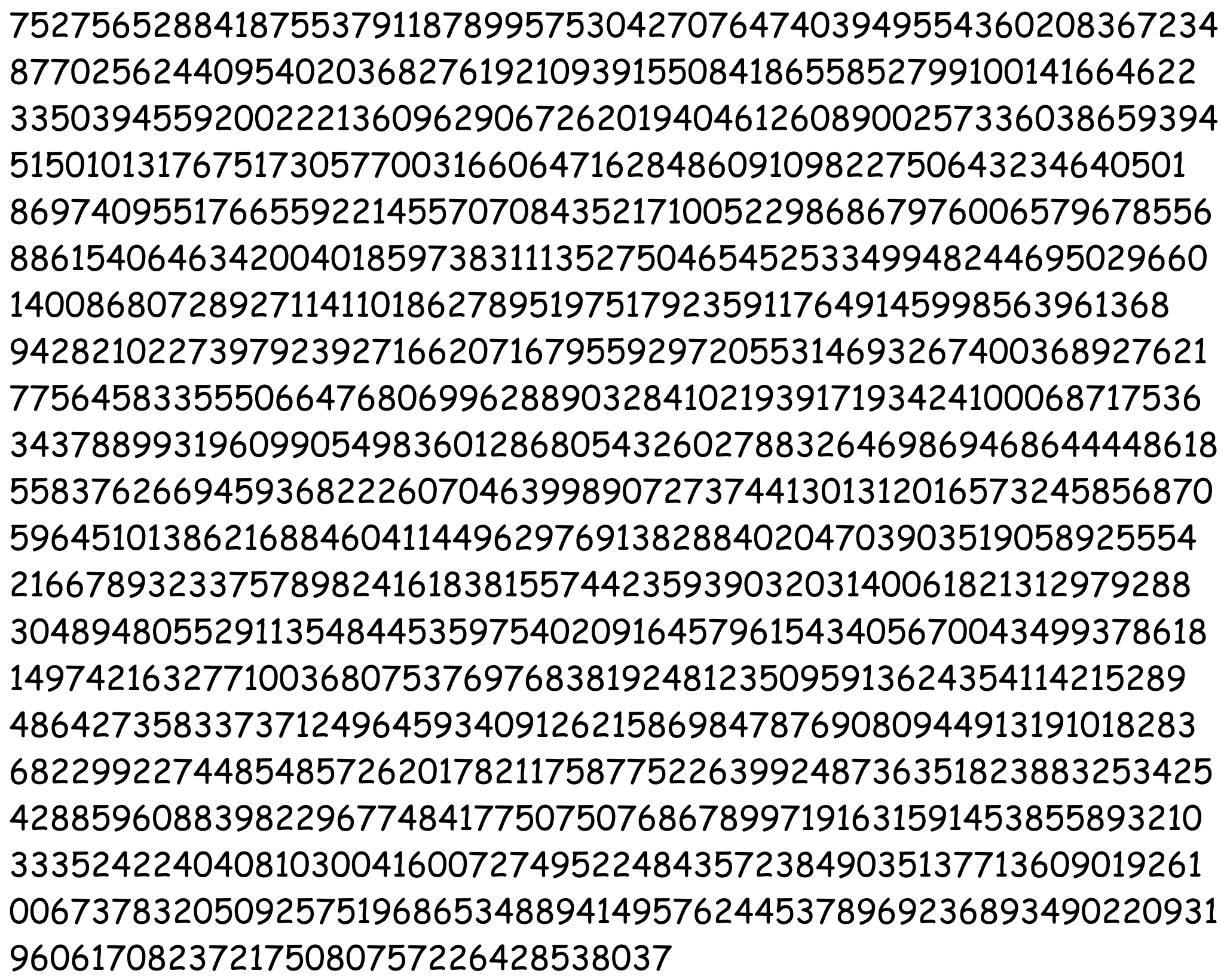

P.png:

P

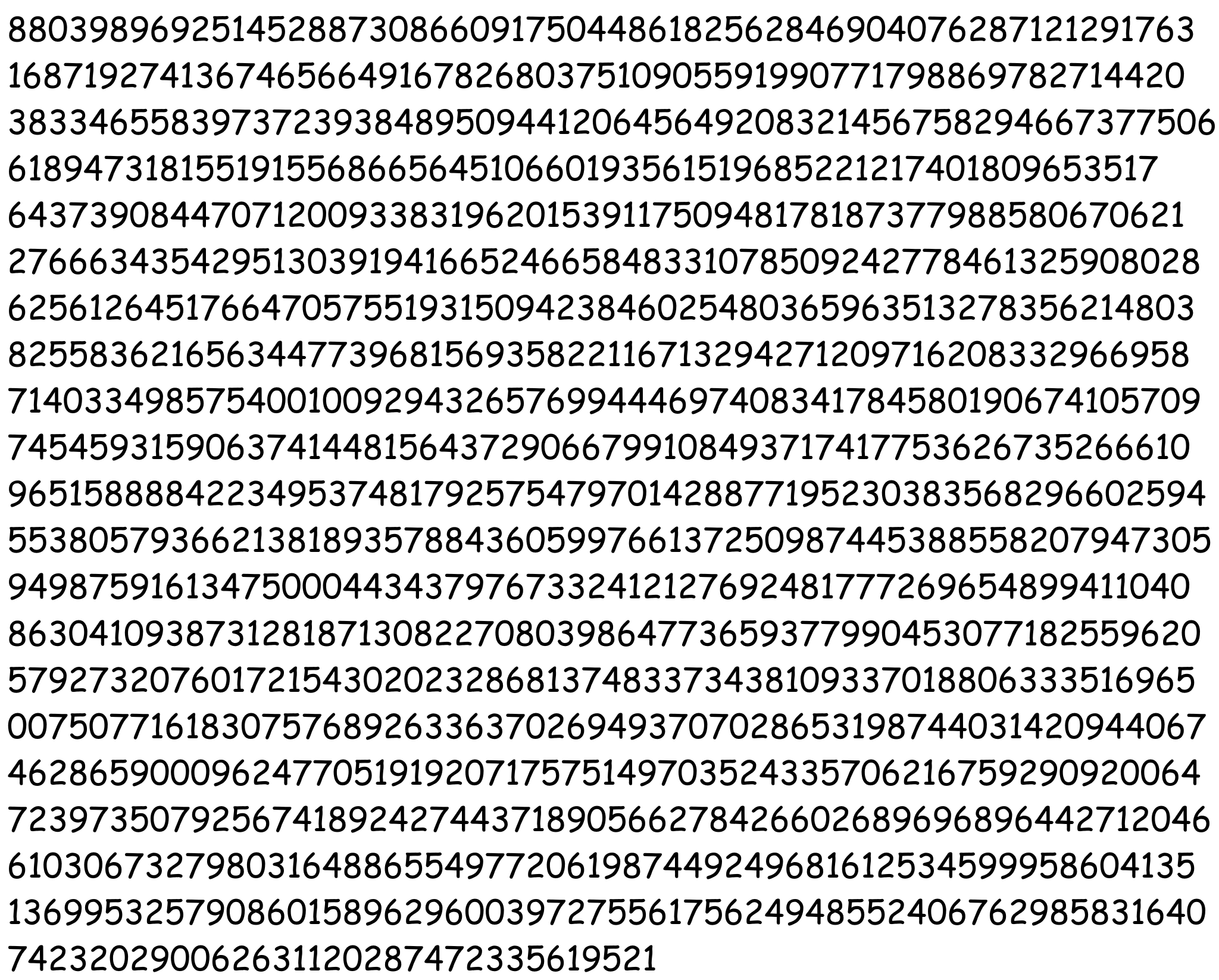

Q.png:

Q

In RSA (and here),

  • CT - Ciphertext / Encrypted Message
  • E - Public Exponent (Part of Public Key) that is relatively prime (share no common factors other than 1) to the product of P-1 and Q-1 which is represented by phi
  • P and Q - (Part of private key) Distinct, large prime numbers used in the generation of the RSA key pair.

Retrieving Values

To retrieve the values from the image, what we had to do was to use OCR to get the values from the image. I used a free OCR tool and uploaded the files.

The results were as such:

CT: 547590045996470261225144068564632591573787420865767654212444036810572966678309584960972626 777469094681032974328164904149749600259672136934210403710935407987419571508025184041271895 067424156324469024810966606852261431391688357761512441188128187458484503164121214384836360 742836216967714420625882111057022247970965942848303921794789346337737893197243612818268465 250465877044258806243922230727023881404970938005953190967778288998431676016702769147989927 719939182760311480334264809421162220015621090135416401880927503987522127265969654408291660 790352126419357164108533856843237323171953026076531105728648328324923086143326956880262885 203796912258527629468067372572383012312176987519524843551719189468646956945850613317182997 989942974331541493738246229851690400679853822266008368822574537577425351978286434342026984 605691841085815076342812086868023146780043716604629194888656921833024316612560619555137422 446188904342302733188575919468514004498619801759424982795897844061952346726879066178817850 934595446457909109453837848675711241549430795712234153989264410262939683540458865005615713 268101445833037375744808596085053241804888891701971868711759992716579549993335302912988330 587350904650760602395488347207624117794040982092935808682384669215975260316456957005280536 323748748451859327148084313706338115025237168232332534517867166295513314043649722568822723 980570806206350360190837033224939468341892520615348593265252930033163747357910048800707270 329959279250125176893733926396824275827180145794109603384095258309396482826564465328137465 494645467473805118722935849245504408363355846668577679514586108364779800765168640592142304 039838955302308914087893023063252032349069709839176651451588638893935334633671625047109023 175942570562397231739366947453236019232243950959163541616500487920026686827091185458918470 395565313445637882007182680733646365466964964492493047008454896836188780586371966370294876 198020858848707820674621729887685898963936365043959397213677672399150215969434394621340356 476956194967721227263377291913870111556540279774436032833389518938555906361035170116045111 581111048932758951598288290256975575396734603373938570048755291566401584397815342661811437 979695992858063766385621604576552328916703837820995591294013715783944373602881462604795099 961134208159255804708926010191436116381452002653737716505049107799043258685780634928186042 043269235310046607045310234994163743652142826561145366664556272951154058573009377757365555 43797882713184445755824314743287083

E: 65537

P: 752756528841875537911878995753042707647403949554360208367234 877025624409540203682761921093915508418655852799100141664622 335039455920022213609629067262019404612608900257336038659394 515010131767517305770031660647162848609109822750643234640501 869740955176655922145570708435217100522986867976006579678556 886154064634200401859738311135275046545253349948244695029660 140086807289271141101862789519751792359117649145998563961368 942821022739792392716620716795592972055314693267400368927621 775645833555066476806996288903284102193917193424100068717536 343788993196099054983601286805432602788326469869468644448618 558376266945936822260704639989072737441301312016573245856870 596451013862168846041144962976913828840204703903519058925554 216678932337578982416183815574423593903203140061821312979288 304894805529113548445359754020916457961543405670043499378618 149742163277100368075376976838192481235095913624354114215289 486427358337371249645934091262158698478769080944913191018283 682299227448548572620178211758775226399248736351823883253425 428859608839822967748417750750768678997191631591453855893210 333524224040810300416007274952248435723849035137713609019261 006737832050925751968653488941495762445378969236893490220931
960617082372175080757226428538037

Q: 880398969251452887308660917504486182562846904076287121291763 168719274136746566491678268037510905591990771798869782714420 383346558397372393848950944120645649208321456758294667377506 618947318155191556866564510660193561519685221217401809653517 643739084470712009338319620153911750948178187377988580670621 276663435429513039194166524665848331078509242778461325908028 625612645176647057551931509423846025480365963513278356214803 825583621656344773968156935822116713294271209716208332966958 714033498575400100929432657699444697408341784580190674105709 745459315906374144815643729066799108493717417753626735266610 965158888422349537481792575479701428877195230383568296602594 553805793662138189357884360599766137250987445388558207947305 949875916134750004434379767332412127692481777269654899411040 863041093873128187130822708039864773659377990453077182559620 579273207601721543020232868137483373438109337018806333516965 007507716183075768926336370269493707028653198744031420944067 462865900096247705191920717575149703524335706216759290920064 723973507925674189242744371890566278426602689696896442712046 610306732798031648865549772061987449249681612534599958604135 136995325790860158962960039727556175624948552406762985831640
742320290062631120287472335619521

Solution

With these values now, we can move on to decrypting the cipher text. I used Python for this, and the steps to decrypting CT is as below:

  1. Calculating n, which is the modulus for the RSA algorithm
n = p * q
  1. Calculating phi, which is the Euler’s totient function, a value used to generate the public and private keys
phi = (p-1) * (q-1)
  1. Computing the private key, which is the modular multiplicative inverse of e modulo phi.
from Crypto.Util.number import *
d = inverse(e, phi)
  1. Decrypting the ciphertext using the private key and converting the integer to bytes
m = long_to_bytes(pow(ct, d, n))
print(m)

This gave the output of b'PCTF{I_H0P3_U_U53D_0CR!}'. Simply removing the b’ prefix and ’ suffix would give us the flag :D
